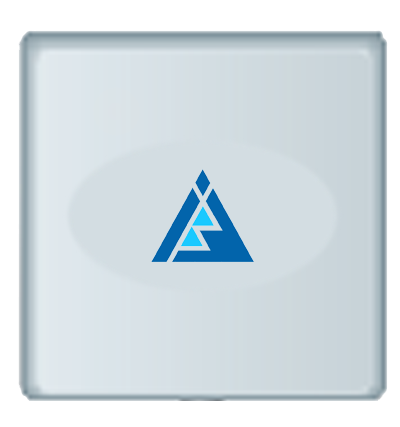

The iMAX-6000 series 150\300\600Mbps wireless metropolitan area network backbone system meets users’ needs for outdoor ultra-long distance, high bandwidth, and high-reliability IP network interconnection. The bandwidth can reach up to 500Mbps×N at the highest, and the farthest communication distance can be over 100 kilometers. It supports a rich range of technologies for the communication security and reliability of wireless metropolitan area networks, achieving the optimal solution for high bandwidth, ultra-long distance, and high reliability. The iMAX-6000 is a pure outdoor wireless metropolitan area network solution, supporting transmission in non-line-of-sight environments and enhanced QoS functions, and is very suitable for telecommunication operators or government and enterprise customers to establish high-reliability private networks.
Main Product Features and Advantages:
- High Bandwidth: The single-hop bandwidth can reach up to 150\300\600Mbps, and can be up to 500Mbps×N (multi-hop superposition) at the highest.
- Transmission Distance: Under line-of-sight conditions, the communication distance of the smallest integrated antenna device can reach 15 kilometers, and the farthest transmission distance of the customized antenna can reach 100 kilometers.
- Operating Frequency: It supports software-adjustable ultra-wideband 5GHz full frequency band (4.9-6.0GHz), with typical operating frequencies of 5.8GHz&5.2GHz.
- Advanced Wireless Technology: An advanced wireless interface based on MIMO (Multiple-Input Multiple-Output), antenna diversity, and OFDM (Orthogonal Frequency Division Multiplexing) technologies, truly supporting NLOS (Non-Line-of-Sight) transmission.
- Duplex Technology: TDD (Time Division Duplexing), 2×2 MIMO-OFDM (BPSK/QPSK/16QAM/64QAM).
- Bandwidth Allocation: Asymmetric throughput adaptation, dynamically allocated between uplink and downlink.
- Wireless Power: High transmit power, reaching 27dBm.
- Channel Bandwidth: Supports 10/20/40/80MHz channel bandwidth, which is dynamically adjustable.
- Wireless Intelligence: Automatic Distance Identification (ADI), Adaptive Automatic Rate (AAR), and Automatic Channel Selection (ACS).
- Network Interface: Equipped with a Fiber DC-IDU optical port indoor unit, which can provide a standard 2-core SC optical fiber interface. The optical transmission distance when connecting to single-mode optical fiber is ≥20 kilometers, and it can provide 3 external 10/100/1000 Base-T Ethernet interfaces.
- IPv6 Support: Supports IPv6 address allocation, and both bridging mode and routing mode are available.

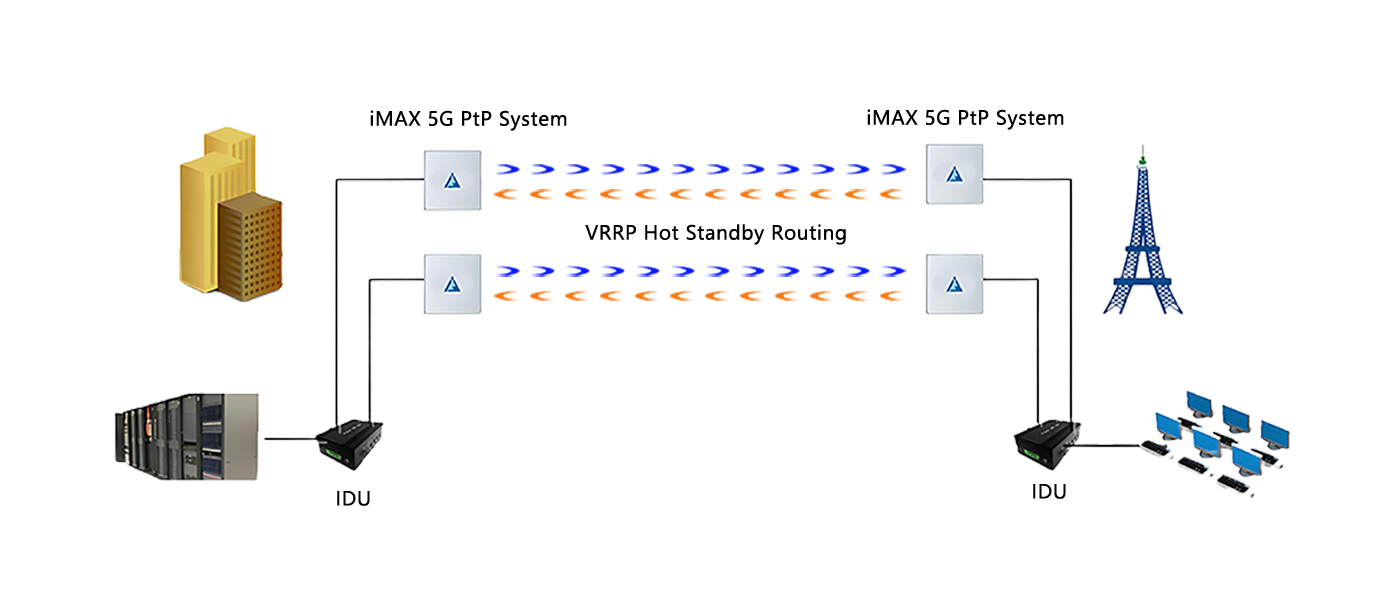

- Routing and Hot Standby: Supports multiple routing modes such as static routing/RIPv2/OSPFv2/BGP, etc., and can build highly reliable ring networks and plan complex metropolitan area networks; supports the VRRP (Virtual Router Redundancy Protocol) virtual hot standby routing protocol, which is suitable for building highly reliable networks such as ring networks and hot standby networks and for fast service roaming; supports the OSPFv3 routing technology, and can plan routes based on IPv6.
- Other Network Technologies: Supports network technologies such as DHCP, DNS, NAT, etc.; supports multiple tunnel communication protocols such as PPTP, L2TP, Open VPN, SSTP, IPSec, EoIP, GRE, etc.
- Multi-service Hybrid Networking: Supports various QoS (Quality of Service) and bandwidth allocation mechanisms, and ensures good stability of audio and video transmission.
- Security: The air interface adopts the proprietary iMAX wireless network communication technology. The wireless link supports wireless packetization, MAC address filtering, and AES 128-bit dynamic advanced encrypted data transmission. Network technologies support multiple security technologies such as VLAN (Virtual Local Area Network), VPN (Virtual Private Network), anti-DoS attacks, and Firewall software firewalls, and support multiple tunnel communication protocols.
- Reliability: Supports RSTP (Rapid Spanning Tree Protocol) link backup; supports ring network routing mode networking; supports the VRRP virtual hot standby routing high-reliability technology; supports the data mirroring technology to send data simultaneously through multiple channels, ensuring the reliable transmission of sensitive information.
- Low Latency & Packet Loss Rate: Millisecond-level delay, and the packet loss rate can be 0% by using the data mirroring technology.
- Clock Synchronization: Supports the NTP (Network Time Protocol) and can achieve the clock synchronization function.
- Power Supply: DC48V/AC220V is optional, and the average power consumption is less than 18W.
- Excellent Environmental Adaptability: Complies with the outdoor IP68 standard of industrial design, and can work stably and reliably in harsh environments (wind, frost, rain, and snow), extreme temperatures, or high-corrosion conditions along the coast. The temperature and humidity indicators of the ODU are: -50℃ to +85℃, humidity 100%, with condensation; the indoor unit IDU supports a wide temperature range of -40℃ to +85℃.
- Ease of Installation and Maintenance: The device is small in size and light in weight. It is connected by a low-cost baseband cable (Category 5e outdoor shielded twisted pair), which is convenient and simple to install, and the construction period is short; it has built-in practical tools such as a spectrum scan viewer and ping, and has an LED signal strength indicator, which is convenient for aligning the antenna.
- Network Management Features: Provides free WEB management or network management software, which is easy to operate and maintain; supports remote management and wireless-side upgrades; supports centralized management and can be integrated into a network management system that supports third-party SNMP for unified management.
Typical Applications：
The modular iMAX-6000 provides a split-system design with dual radio frequency modules, equipped with integrated or external antennas, and supports a series of line-of-sight and non-line-of-sight applications, including:
● Backhaul for 4G base station access ● IP telephony backbone network
● Video surveillance backbone ● Interconnected video conferencing and remote training
● Leased line replacement ● Connection between buildings
● Disaster recovery ● Redundant backup link for mobile base station backhaul
