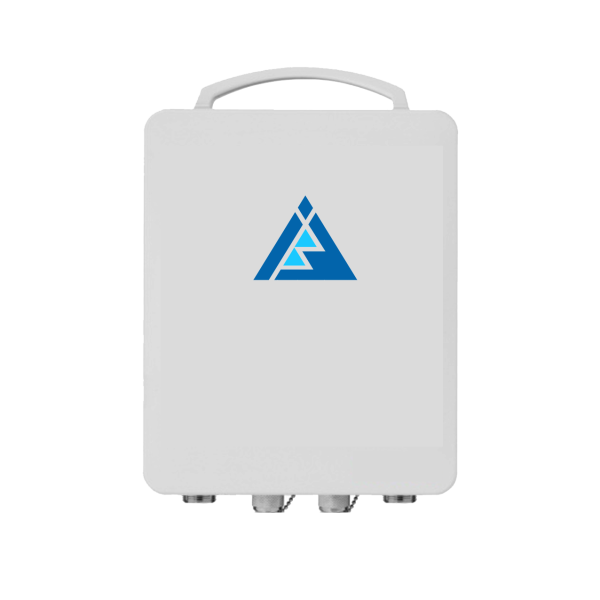

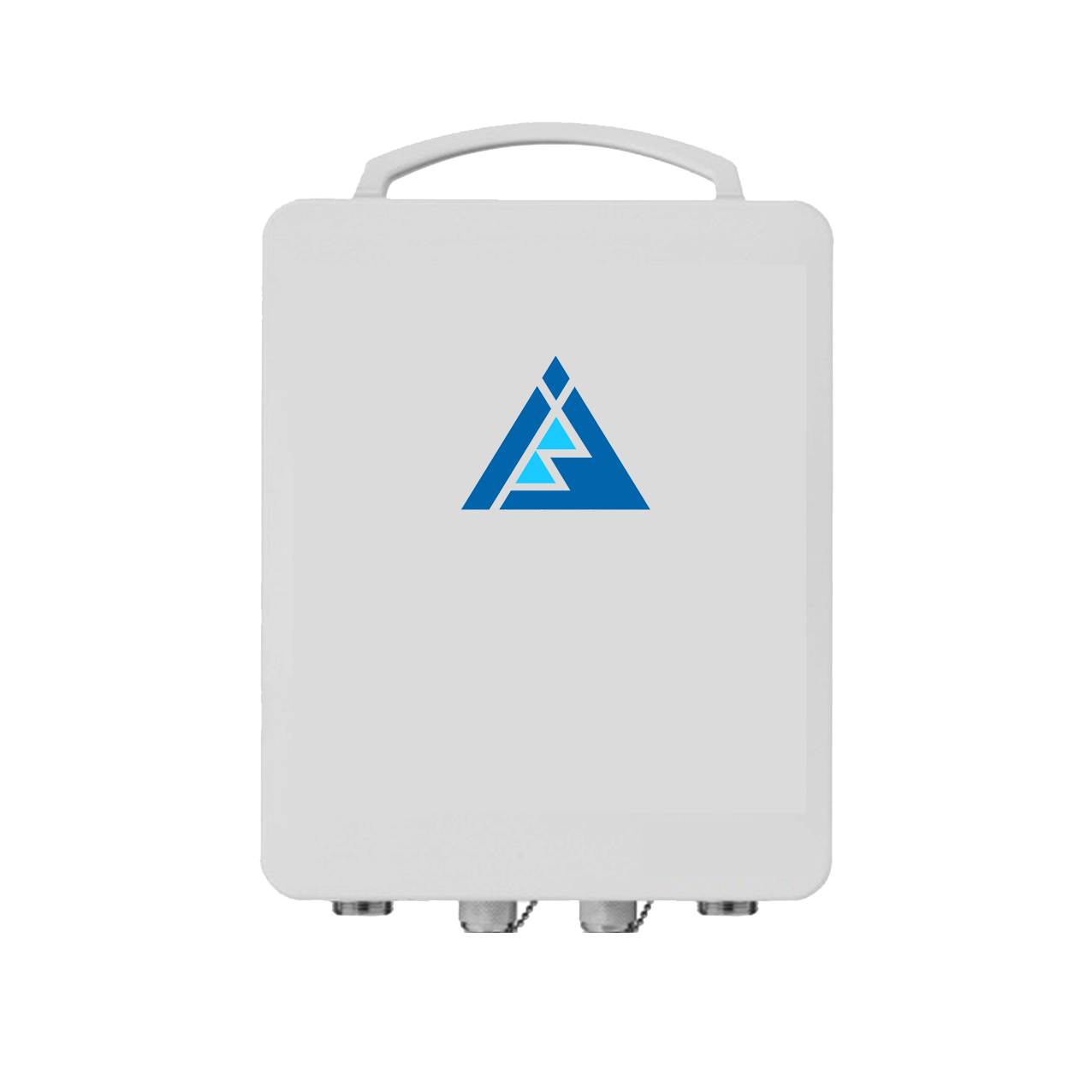

The iMAX-8000S is a high-reliability point-to-multipoint wireless metropolitan area network system. It has a wireless transmission rate of up to 100Mbps per sector and provides a dual-mode base station system, offering a cost-effective solution for applications with lower bandwidth and high reliability. The iMAX-8000S features such technical characteristics as an extremely long outdoor distance, low latency, high bandwidth, and high reliability, making it a cost-effective choice for wireless networking applications such as IP metropolitan area network access.
Product Technical Features and Advantages:
- High bandwidth: The transmission rate per sector of the base station can reach up to 100Mbps. The maximum bandwidth of the dual-mode base station is 100Mbps×2, and the bandwidth of a single base station is N×100Mbps. Both the base station and the client can be customized as single-mode or dual-mode.
- Transmission distance: Under line-of-sight conditions, the coverage radius of point-to-multipoint networking can be up to 30 kilometers (even the smallest integrated antenna client CPE device can meet the communication needs within 10 kilometers), and the point-to-point transmission distance can be up to 50 kilometers.
- Operating frequency: It supports software-tunable ultra-wideband in the 5GHz full frequency band (4.9-6.0GHz), with typical operating frequencies of 5.8GHz and 5.2GHz.
- Advanced wireless technology: An advanced wireless interface based on MIMO (Multiple-Input Multiple-Output), antenna diversity, and OFDM (Orthogonal Frequency Division Multiplexing) technology truly supports NLOS (Non-Line-of-Sight) transmission.
- Duplex technology: TDD (Time Division Duplex), 2x2MIMO-OFDM (BPSK/QPSK/16QAM/64QAM).
- Single-mode or dual-mode: Both the base station and the client are divided into single-mode or dual-mode. The single-mode has 2 RF ports, and the dual-mode has 4 RF ports, which can be connected to multiple antennas to meet the communication needs of different scenarios.
- Non-line-of-sight: Adopting excellent OFDM (Orthogonal Frequency Division Multiplexing) technology, it truly supports non-line-of-sight.
- Bandwidth division: Asymmetric throughput is adaptive and dynamically allocated between uplink and downlink.
- Wireless power: High transmit power, reaching 27dBm.
- Channel bandwidth: Supports dynamically tunable channel bandwidths of 10/20/40/80MHz.
- Wireless intelligence: Automatic Distance Learning (ADI), Adaptive Rate (AAR), and Automatic Channel Selection (ACS).
- Networking mode: Supports various metropolitan area network networking modes such as point-to-multipoint, point-to-point, MESH, hot standby, and ring network. The client can act as a relay in PTP mode, making the system design and deployment very convenient.
- Multiple client options: CPE clients with different rates of 150/300/600Mbps are available. Integrated antennas, external antennas, and single-mode/dual-mode wireless client CPEs can all be customized.
- Non-line-of-sight: Adopting excellent OFDM (Orthogonal Frequency Division Multiplexing) technology, it truly supports non-line-of-sight.
- Hot standby and roaming: The system supports various hot standby and roaming modes such as RSTP, MESH, and VRRP. Through VRRP technology, multiple functions such as redundant hot standby, smooth roaming, and link bandwidth aggregation can be achieved.
- Antenna selection: For the base station unit BS, a 120-degree dual-polarized sector antenna or a 360-degree omnidirectional antenna is recommended. For the user unit CPE, an integrated antenna (a conventional 18dBi dual-polarized antenna, and a 23dBi dual-polarized antenna can be customized upon order) is recommended. External antennas such as omnidirectional antennas, parabolic antennas, and planar antennas can also be customized according to needs.
- Network interface: The base station BS is equipped with a Fiber DC-IDU optical port indoor unit as standard, which can provide a 2-core SC optical fiber standard interface. The optical transmission distance when connected to single-mode optical fiber is ≥20 kilometers, and it can provide 3 10/100/1000Base-T Ethernet interfaces externally.
- Support for IPv6: Supports IPv6 address allocation, and both bridging mode and routing mode are available.
- Routing and hot standby: Supports multiple routing modes such as static routing, RIPv2, OSPFv2, and BGP, and can construct highly reliable ring networks and plan complex metropolitan area networks. Supports the VRRP virtual hot standby routing protocol, which is suitable for constructing highly reliable networks such as ring networks and hot standby networks and for fast service roaming. Supports OSPFv3 routing technology and can plan routes based on IPv6.
- Other network technologies: Supports network technologies such as DHCP, DNS, and NAT; supports multiple tunnel communication protocols such as PPTP, L2TP, Open VPN, SSTP, IPSec, EoIP, and GRE.
- Multi-service hybrid networking: Supports various QoS (Quality of Service) and bandwidth allocation mechanisms, and has good stability in audio and video transmission.
- Security: The air interface adopts the proprietary iMAX wireless network communication technology. The wireless link supports wireless packetization, MAC address filtering, and AES 128-bit dynamic advanced encrypted data transmission. Network technologies support multiple security technologies such as VLAN (Virtual Local Area Network), VPN (Virtual Private Network), protection against DoS attacks, and Firewall software firewall, and support multiple tunnel communication protocols.
- Reliability: Supports MESH architecture networking; supports RSTP link backup; supports ring network routing mode networking; supports VRRP virtual hot standby routing high-reliability technology; supports the data mirroring technology to send data simultaneously through multiple channels, ensuring the reliable transmission of sensitive information.
- Low latency & packet loss rate: Millisecond-level delay, and the packet loss rate can be 0% by using the data mirroring technology.
- Clock synchronization: Supports the NTP protocol and can achieve the clock synchronization function.
- Power supply: DC48V/AC220V is optional, with ultra-low power consumption. The average power consumption of the BS (single-mode) is ≤18W, and the average power consumption of the CPE is ≤12W.
- Excellent environmental adaptability: Meets the industrial design outdoor IP68 standard and can operate stably and reliably in harsh environments (wind, frost, rain, and snow), extreme temperatures, or high-corrosion coastal conditions. The temperature and humidity indicators of the ODU are: -50℃ to +85℃, humidity 100%, condensation; the Fiber DC-IDU conforms to the industrial wide-temperature indicator of -40℃ to +85℃, and the rail-mounted installation is more concise.
- Convenience of installation and maintenance: The device is small in size and light in weight. It is connected to the device using a low-cost baseband cable (Category 5e outdoor shielded twisted pair), and the installation is convenient and simple with a short construction period. It has built-in practical tools such as a spectrum scanner and ping, and has an LED signal strength indicator for easy antenna alignment.
- Network management features: Provides a free WEB management or network management software, which is easy to operate and maintain; supports remote management and wireless side upgrade; supports centralized management and can be integrated into a network management system that supports third-party SNMP for unified management.
Product Model:
Base Station BS: Client-side CPE:
iMAX-8000S-BS100-ENT iMAX-8000S-CPE100-ENT/INT
iMAX-8000S-BS100M2 iMAX-8000S-CPE100M2
Explanation: In the model preparation, BS indicates the base station, CPE indicates the client side. The number 100 represents the air interface bandwidth of the system; the wireless module is represented by M. For single-mode, there is no additional identification, and for dual-mode, it is marked as M2, and so on; ENT indicates the model with an external antenna, and INT indicates the model with an integrated antenna.
Typical Applications：
- Government and corporate users
The iMAX-8000S system provides dedicated wireless broadband network infrastructure for government departments and corporate networks. These facilities can significantly reduce the total construction cost when implementing the following applications, and obtain a network with high reliability and security:
Ø Networking for low-capacity high-definition video surveillance
Ø Networking for dedicated networks of large-scale enterprises and public institutions
Ø Applications of long-distance and low-capacity IP network connections outdoors
Ø Establishment of wireless metropolitan area networks with high reliability and high security
Ø Establishment of private mobile communication networks such as ship networking, vehicle networking, heavy machinery networking, and unmanned aerial vehicle networking
