Waveguides are widely used in fields such as rail transit, ports, and smart factories in Industry 4.0. The iMAX-8000W is a high-capacity mobile wireless communication system specifically designed for waveguides. A reliable wireless communication system is constructed through specialized design.
The iMAX-8000W works in conjunction with waveguides (typically: slotted waveguides). Aiming at the networking requirements of fast mobile communication for railways, subways, heavy machinery, robots, etc., it effectively solves common problems in mobile scenario applications such as high bandwidth, high system capacity, high-speed movement, and smooth roaming between multiple base stations. In particular, its technical characteristics such as anti-interference, high speed, high bandwidth, fast roaming, high reliability, and high-performance image processing make it an outstanding product among those in the same industry.
The single radio frequency of the iMAX-8000W system has a maximum bandwidth of 600Mbps, and the dual-mode bandwidth exceeds 1.2Gbps. It can also achieve hot standby or multiple bandwidth superpositions, providing higher performance and reliability.
In the application of mobile networks, the iMAX-8000W system is flexible and mobile. It supports advanced network technologies such as VRRP virtual hot standby routing, centerless mesh network (MESH), wireless signal threshold roaming, and data mirroring and simultaneous transmission. Its excellent performance can fully meet the multi-device network integration and networking scheme for the same waveguide, making it the best solution for establishing IP networks in waveguide communication scenarios.

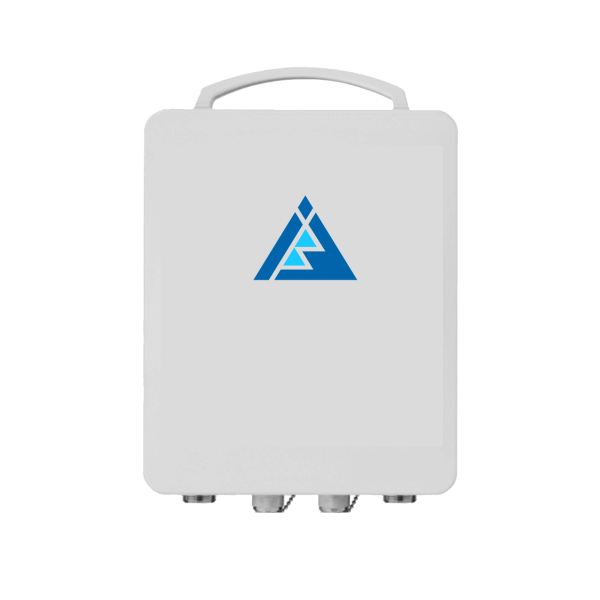

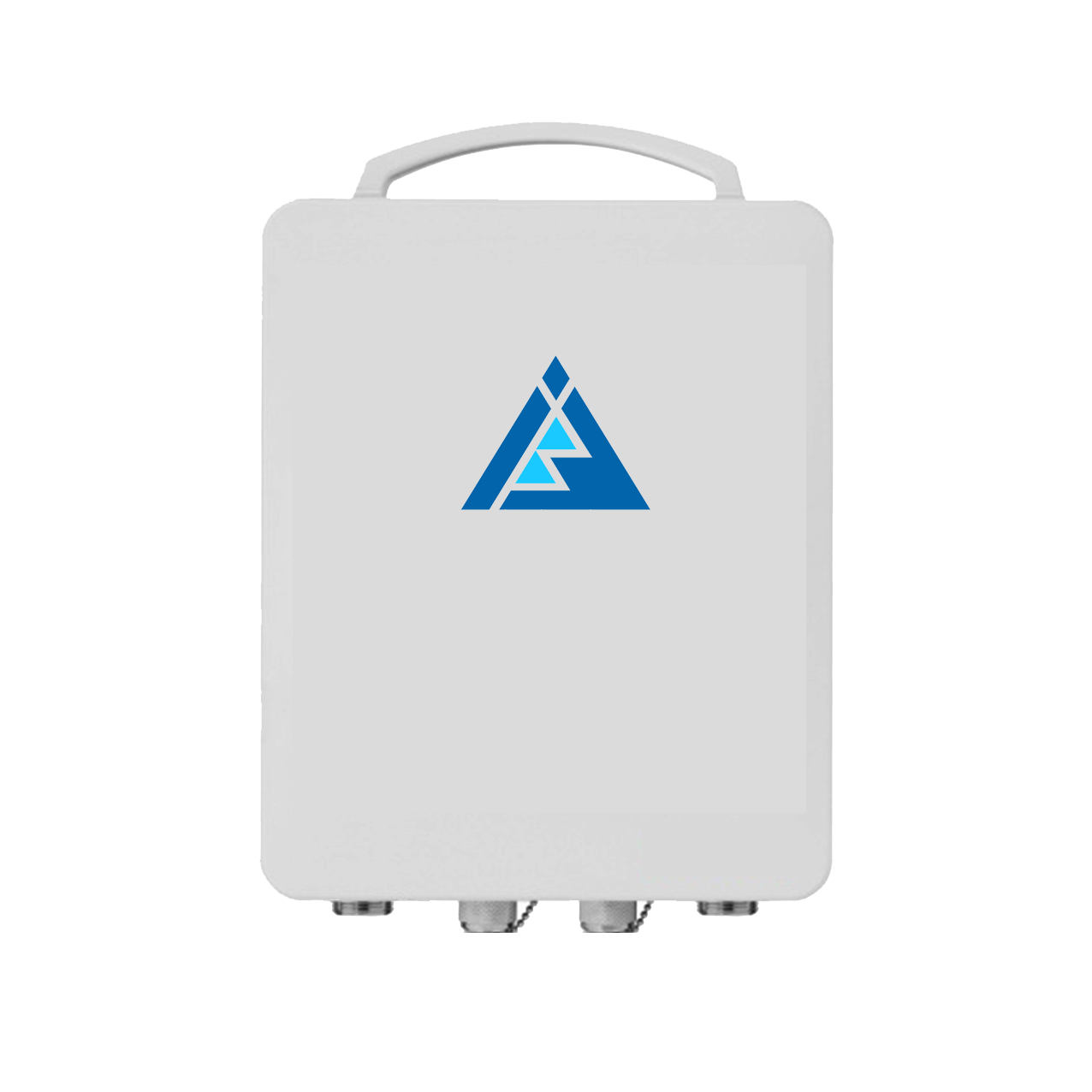

Outdoor ODU (Base Station & Outdoor CPE)

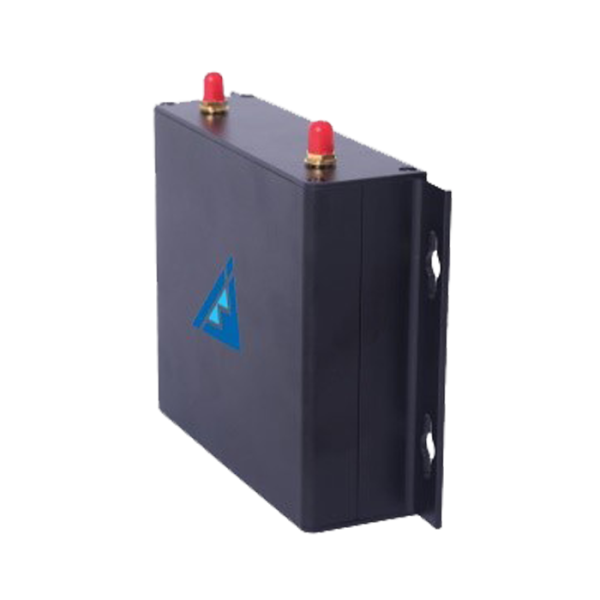

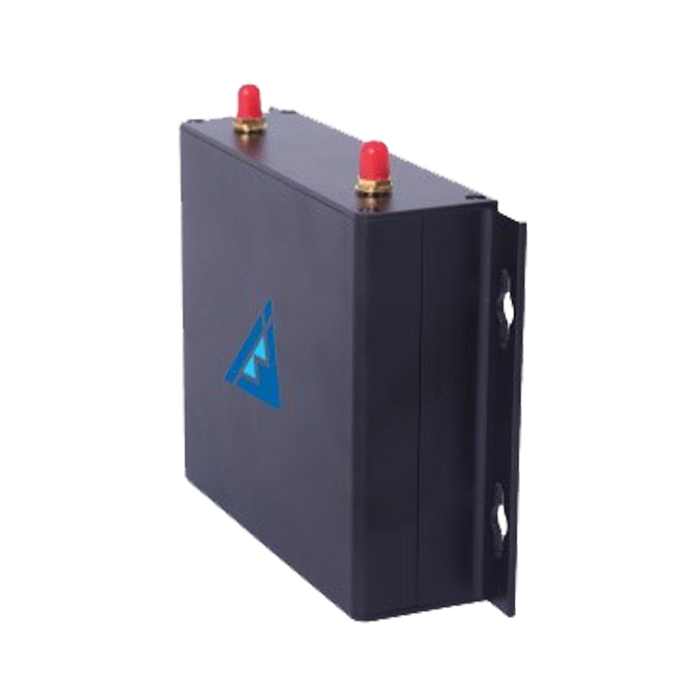

Indoor and In-Vehicle Mini Client
Product Technical Features and Advantages:
- Dedicated design for waveguides: Matched with 5G frequency band slot waveguides, it is fast and easy to use.
- High bandwidth: The transmission rate per sector of the base station can reach up to 600Mbps. The bandwidth of a single base station is 600Mbps×N (multi-base station superposition). Both the base station and the client can be customized as single-mode or dual-mode.
- Transmission distance: When combined with 5G wideband slot waveguides, the farthest access distance of a single-mode base station can reach 400 meters, and the farthest access distance of a dual-mode base station can reach 500 meters.
- Operating frequency: It supports software-tunable ultra-wideband in the 5GHz full frequency band (4.9-6.0GHz), with typical operating frequencies of 5.8GHz and 5.2GHz.
- Advanced wireless technology: An advanced wireless interface based on MIMO (Multiple-Input Multiple-Output), antenna diversity, and OFDM (Orthogonal Frequency Division Multiplexing) technology truly supports NLOS (Non-Line-of-Sight) transmission.
- Duplex technology: TDD (Time Division Duplex), 2x2MIMO-OFDM (BPSK/QPSK/16QAM/64QAM).
- Single-mode or dual-mode: Both the base station and the client are divided into single-mode or dual-mode. The single-mode has 2 RF ports, and the dual-mode has 4 RF ports, which can be connected to multiple waveguides or multiple antennas to meet the communication needs of different scenarios.
- Bandwidth division: Asymmetric throughput is adaptive and dynamically allocated between uplink and downlink.
- Wireless power: High transmit power, reaching 27dBm.
- Channel bandwidth: Supports dynamically tunable channel bandwidths of 10/20/40/80MHz.
- Wireless intelligence: Automatic Distance Learning (ADI), Adaptive Rate (AAR), and Automatic Channel Selection (ACS).
- Networking mode: Supports various metropolitan area network networking modes such as point-to-multipoint, point-to-point, MESH, hot standby, and ring network. The client can act as a relay in PTP mode, making the system design and deployment very convenient.
- Multiple client options: CPE clients with different rates of 150/300/600Mbps are available. Integrated antennas, external antennas, and single-mode/dual-mode wireless client CPEs can all be customized.
- Hot standby and roaming: The system supports various hot standby and roaming modes such as RSTP, MESH, and VRRP. Through VRRP technology, multiple functions such as redundant hot standby, smooth roaming, and link bandwidth aggregation can be achieved.
- Antenna selection: The base station unit BS is directly connected to the waveguide, and the user unit CPE is recommended to use a customized dedicated waveguide antenna.
- Network interface: The base station BS is equipped with a Fiber DC-IDU optical port indoor unit as standard, which can provide a 2-core SC optical fiber standard interface. The optical transmission distance when connected to single-mode optical fiber is ≥20 kilometers, and it can provide 3 10/100/1000Base-T Ethernet interfaces externally.
- Support for IPv6: Supports IPv6 address allocation, and both bridging mode and routing mode are available.
- Routing and hot standby: Supports multiple routing modes such as static routing, RIPv2, OSPFv2, and BGP, and can construct highly reliable ring networks and plan complex metropolitan area networks. Supports the VRRP virtual hot standby routing protocol, which is suitable for constructing highly reliable networks such as ring networks and hot standby networks and for fast service roaming. Supports OSPFv3 routing technology and can plan routes based on IPv6.
- Other network technologies: Supports network technologies such as DHCP, DNS, and NAT; supports multiple tunnel communication protocols such as PPTP, L2TP, Open VPN, SSTP, IPSec, EoIP, and GRE.
- Multi-service hybrid networking: Supports various QoS (Quality of Service) and bandwidth allocation mechanisms, and has good stability in audio and video transmission.
- Security: The air interface adopts the proprietary iMAX wireless network communication technology. The wireless link supports wireless packetization, MAC address filtering, and AES 128-bit dynamic advanced encrypted data transmission. Network technologies support multiple security technologies such as VLAN (Virtual Local Area Network), VPN (Virtual Private Network), protection against DoS attacks, and Firewall software firewall, and support multiple tunnel communication protocols.
- Reliability: Supports MESH architecture networking; supports RSTP link backup; supports ring network routing mode networking; supports VRRP virtual hot standby routing high-reliability technology; supports the data mirroring technology to send data simultaneously through multiple channels, ensuring the reliable transmission of sensitive information.
- Low latency & packet loss rate: Millisecond-level delay, and the packet loss rate can be 0% by using the data mirroring technology.
- Clock synchronization: Supports the NTP protocol and can achieve the clock synchronization function.
- Power supply: DC48V/AC220V is optional, with ultra-low power consumption. The average power consumption of the BS (single-mode) is ≤18W, and the average power consumption of the CPE is ≤12W.
- Excellent environmental adaptability: Meets the industrial design outdoor IP68 standard and can operate stably and reliably in harsh environments (wind, frost, rain, and snow), extreme temperatures, or high-corrosion coastal conditions. The temperature and humidity indicators of the ODU are: -50℃ to +85℃, humidity 100%, condensation; the Fiber DC-IDU conforms to the industrial wide-temperature indicator of -40℃ to +85℃, and the rail-mounted installation is more concise.
- Convenience of installation and maintenance: The device is small in size and light in weight. It is connected to the device using a low-cost baseband cable (Category 5e outdoor shielded twisted pair), and the installation is convenient and simple with a short construction period. It has built-in practical tools such as a spectrum scanner and ping, and has an LED signal strength indicator for easy antenna alignment.
- Network management features: Provides a free WEB management or network management software, which is easy to operate and maintain; supports remote management and wireless side upgrade; supports centralized management and can be integrated into a network management system that supports third-party SNMP for unified management.
Product Model:
Base Station MBS: Mobile Terminal MCS:
iMAX-8000W1-MBS300/600 iMAX-8000W1-MCS150/300/600
iMAX-8000W2-MBS300/600 iMAX-8000W2-MCS150/300/600
iMAX-8000W1/2-MCS150/300/600ID
Explanation: In the model preparation, MBS indicates the waveguide base station, MCS indicates the mobile client. The number represents the air interface bandwidth of the system; the wireless module is represented by W1 or W2. W1 represents single-mode, and M2 represents dual-mode, and so on; by default, the devices are outdoor models with external antennas, and ID indicates the indoor customized model.
Typical Applications：
The iMAX-8000W system provides the IP wireless broadband network infrastructure dedicated to waveguides for enterprise networks, meeting the networking requirements of fast mobile communication for subways, port machinery, robots, etc., and offering high-end networking solutions in the way of waveguide communication:
- Real-time network interconnection system between subway trains and the ground
- IP networking of the subway operation information collection and control system
- On-board extension of 3G\4G\5G telecom operator base stations in subways
- Networking for large-capacity high-definition video surveillance on subway trains
- Backbone interconnection of the subway WiFi coverage system
- Industrial 4.0 automated on-site robot control system
- Mobile networking of the remote intelligent control system for port heavy machinery
