The iMWB-5GW1000 is a 5G multi-mode wireless gateway system. It simultaneously supports 5G wide area network (SA&NSA) and WiFi6 wireless local area network coverage (2.4GHz&5.8GHz), and provides 2 Ethernet interfaces, which can be used as an edge VPN access gateway for the cloud exchange platform. By leveraging WiFi6 wireless technology to achieve high bandwidth, high reliability, and high capacity, it also supports 5G network access of the public network of telecommunications operators, providing users with the optimal wireless networking solution more flexibly.
The iMWB-5GW1000 wireless local area network (WLAN) module supports dual-frequency WiFi6 (IEEE802.11AX) coverage at 2.4GHz and 5.8GHz, and can be used as a wireless AP or MESH bridge, suitable for the extension of the wired network within the industrial Internet of Things local area network.
The 5G module of the iMWB-5GW1000 is suitable for the wide area network WWAN or Internet access of telecommunications operators. With a built-in 5G full-network wireless module, it can meet the network access requirements of different telecommunications operators. It is suitable for scenarios with 5G signal coverage in unrestricted areas where high bandwidth, and low requirements for reliability and real-time performance are needed, and can be used to establish IP public networks or VPN virtual networks.
The iMWB-5GW1000 device features an indoor design, with a small size, light weight, and low power consumption. It can meet the networking needs of IP terminals in the Internet of Things or industrial Internet in industries such as environmental protection, ports, water affairs, transportation, petroleum, scenic areas, and factories. Especially for the 5G networking needs in mobile scenarios (mobile monitoring points, vehicle networking, ship networking, etc.), it is an ideal choice for high-quality wireless communication in the Internet of Things industry.
Typical Applications：
- High Bandwidth: The WLAN module supports a maximum transmission rate of 1800 Mbps (see detailed specifications). It can function as a WiFi6 AP for wireless network coverage and is compatible with various WiFi devices. The 5G WWAN module supports a peak transmission rate of 1000 Mbps (actual performance is subject to the bandwidth and capacity of telecom operators’ base stations).
- Operating Frequencies: The WLAN module supports both 2.4 GHz (2400-2483.5 MHz) and 5 GHz bands (5150-5240 MHz, 5725-5850 MHz), software-tunable with a typical operating frequency of 5.8 GHz. The 5G WWAN module supports all major cellular networks.
- Networking Modes: The WLAN module supports multiple networking modes including AP and MESH. The 5G WWAN module can be used as an industrial-grade 5G router.
- Transmission Distance: Under line-of-sight conditions, the WLAN module provides a typical WiFi coverage radius of 200 meters. The 5G WWAN module maintains connectivity with base stations up to 500 meters away.
- Multi-Service Networking: Supports multiple QoS (Quality of Service) mechanisms and bandwidth allocation strategies for stable audio and video transmission.
- Environmental Adaptability: Operates reliably in temperatures ranging from -10°C to +50°C with a relative humidity up to 85% (non-condensing).

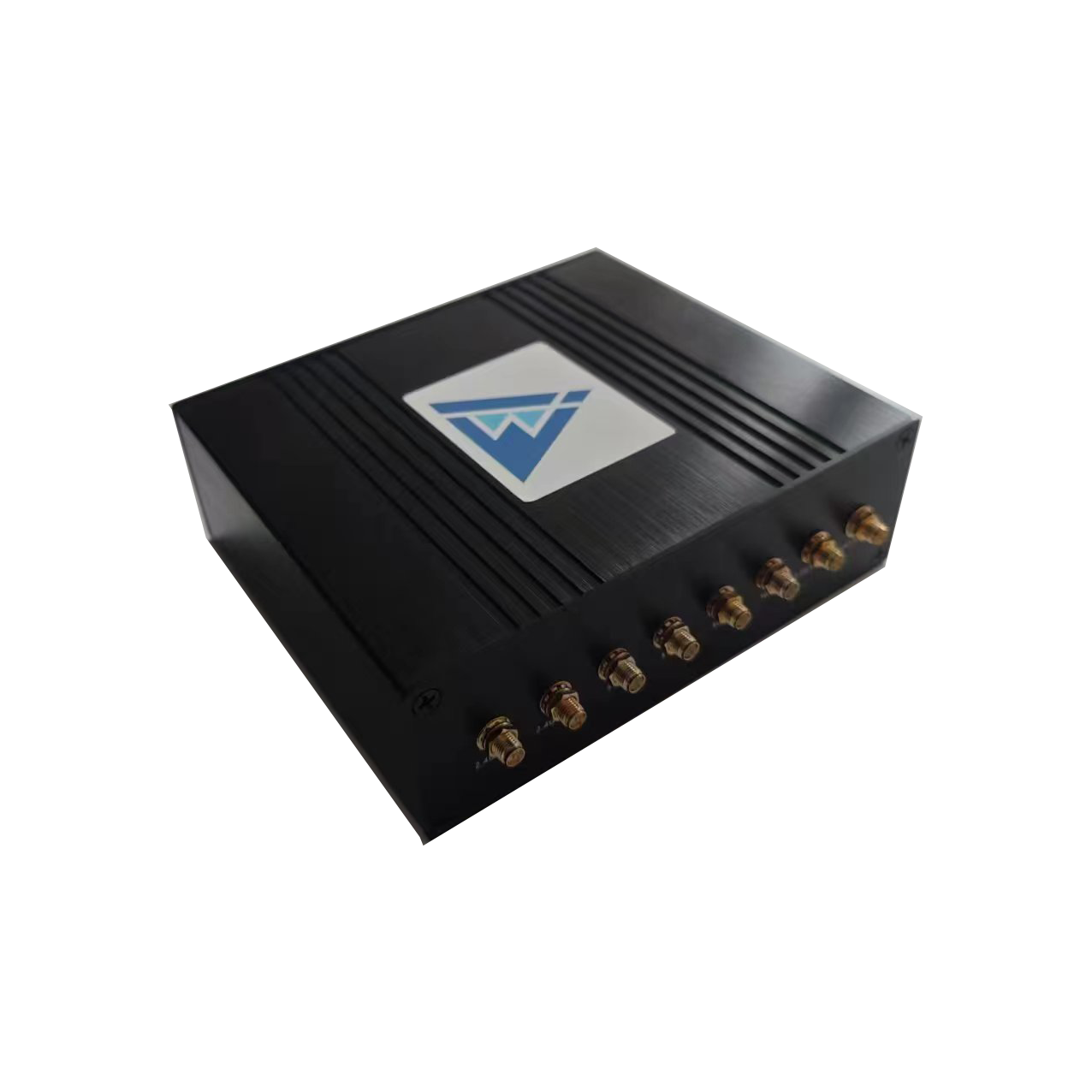

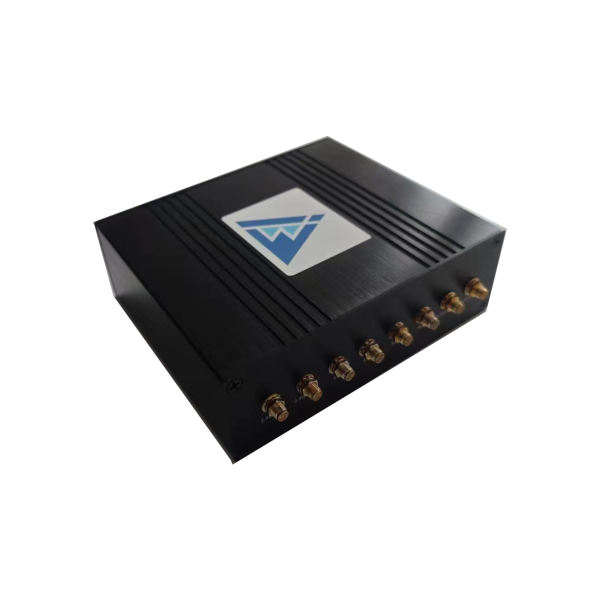

- Antennas: The WLAN module features MIMO 2×2 antenna configuration, while the 5G WWAN module uses MIMO 4×4, ensuring high capacity, non-line-of-sight communication, and support for mobile deployments.

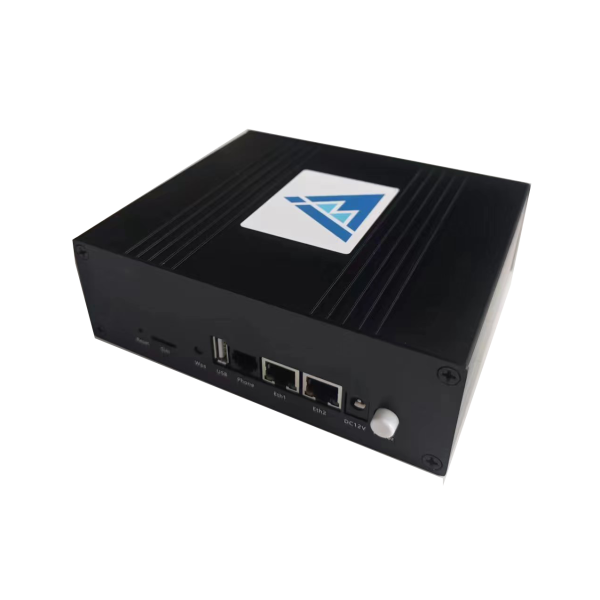

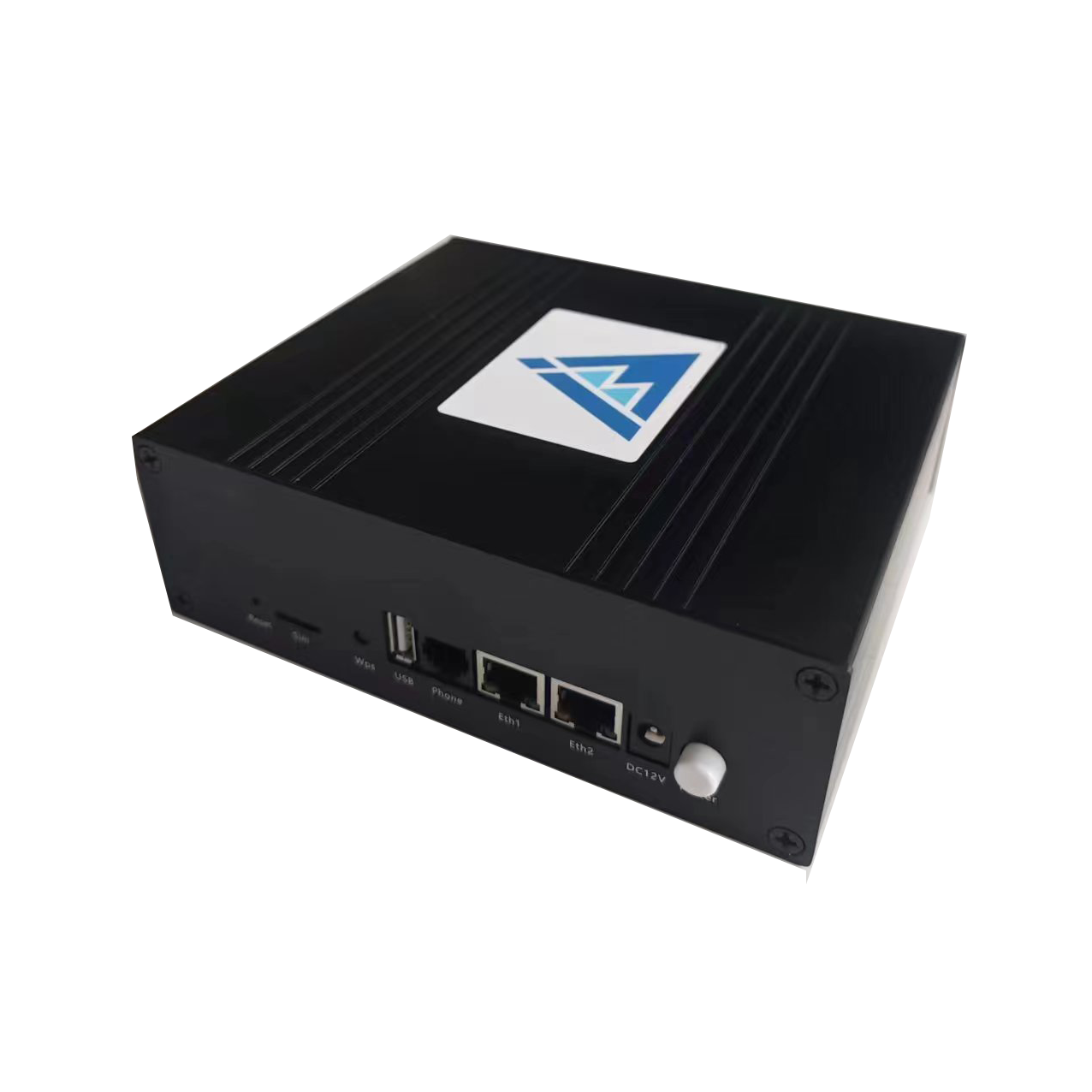

- Network Interfaces: Equipped with two 10/100/1000 Mbps Ethernet ports (RJ45).
- Security: Implements wireless SSID grouping and dynamic data encryption to meet high-security requirements. Supports multiple VPN technologies for secure private network connections.
- Network Management: Enables centralized device management, remote software upgrades, and over-the-air (OTA) updates for wireless components.
- Easy Installation: Compact design, lightweight, and simple installation process.
